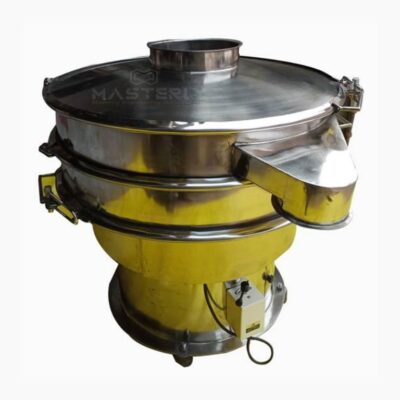

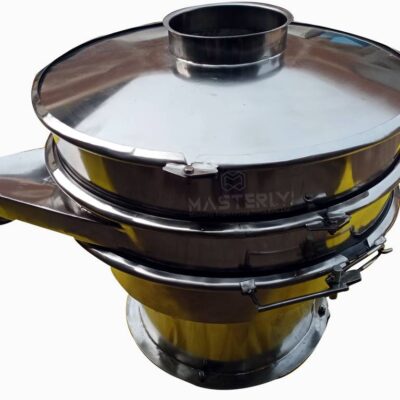

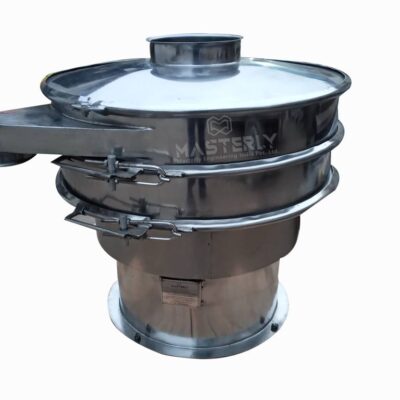

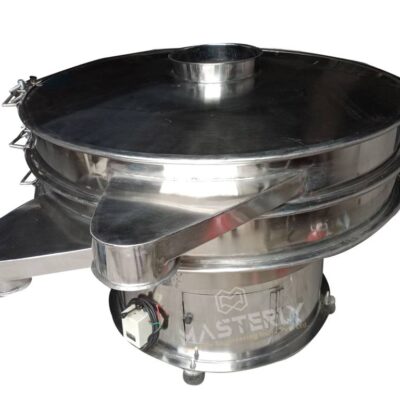

GYRATORY VIBRO SIFTER

Advantages of Vibro Sifter

• Compact and portable design.
• Guarantee low noise operation and high speed operation.
• Energy efficient equipment
• Uses a optional flame proof motor material.
• Made from high grade stainless steel 304, 316.
• Better dust handling capability.
• Many screen options such as double or triple.
• Easy to dismantle and clean.
• Adjustable vibratory motion.
• Sturdy and robust design.
• Easy to install and operate.
• Design should allow for easy and fast changing of sieves.
• Guarantee high performance.
• Durable to guarantee a long service lifespan thereby reducing maintenance costs.
• Easy Maintenance Save on maintenance with a piece of equipment engineering to last. Toggle clamps allow fast dis-assembly for regular cleaning.

Multiple Separations:- The vibratory separator can be stacked with up to 4 screening decks, separating into as many as five fractions.

Accurate Grading:- Thorough and accurate grading are achieved by controlling product screening time, allowing for complete separation.

Reduced Downtime:- The simple and robust design will continue to function with very little mechanical intervention.

Range of Sizes:- The separators are available in 24”, 30”,36”, 48”, 60” and 72” diameters to handle throughputs ranging from a few kilograms to a few tones.

Dust Cover:- It is composed of a feed inlet and an oblique cone, and its lower end is connected with the screen frame to prevent the dust in the workshop from falling into the material when the vibro sifter is working. The commonly used materials are stainless steel, carbon steel, and plastic. Etc. 3 kinds of materials.

Screen Frame:- Sandwich Screen Ring Comes with Bolting Systems Which will enable the mesh frame To change mesh Cloth in-House.

Mesh cleaning device:- Mesh Deblinding Kit is an Anti-Blinding Device which contains Food Grade ball with the help of the vibration the ball start bouncing and prevent the mesh blinding. An anti-blinding Ball Tray Arrangement, comprising of a coarse mesh beneath the sizing mesh on which a sufficient number of elastomer or polymer balls are placed to continuously tap the sizing screen to remove dry particles of the material which is screened and increase screening efficiency..

Range of Models:-
